Commercial Vehicle Cameras for HGVs, Fleets & Plant
Vtech Systems supplies and professionally installs a wide range of commercial vehicle cameras for HGVs, vans, fleets, plant machinery and specialist vehicles.
Our camera range includes front-facing, side-view, rear-view and wide-angle cameras for use with monitors, DVR recording systems and 360° surround-view applications.
Cameras are available in different resolutions, viewing angles and housing styles to suit a wide range of vehicles and operating environments.
Whether you are replacing an existing camera or designing a new multi-camera system, Vtech can help identify a suitable camera based on the required field of view, recording system and installation position.
Which Vehicle Camera Do I Need?
Side-View Cameras
Designed to improve visibility along the side of the vehicle and around close-proximity areas.
Side-mounted cameras are commonly used on HGVs, commercial vehicles, motorhomes and horseboxes and can be integrated with monitors, DVR systems and detection solutions.
Rear-View Cameras
Heavy-duty rear cameras provide improved visibility when reversing and manoeuvring.
Depending on the system, they can be displayed automatically when reverse gear is selected and recorded through a compatible DVR.
Front-Facing Cameras
Front-facing cameras provide a clear view of the road ahead and are commonly used for incident recording and fleet CCTV systems.
Windscreen-mounted versions are available where a discreet internal camera installation is required.
Wide-Angle & 360° Cameras
Wide-angle cameras are used where an expanded field of view is required, including Vtech 360° bird’s-eye camera systems.
Correct camera selection and positioning are particularly important in surround-view applications.

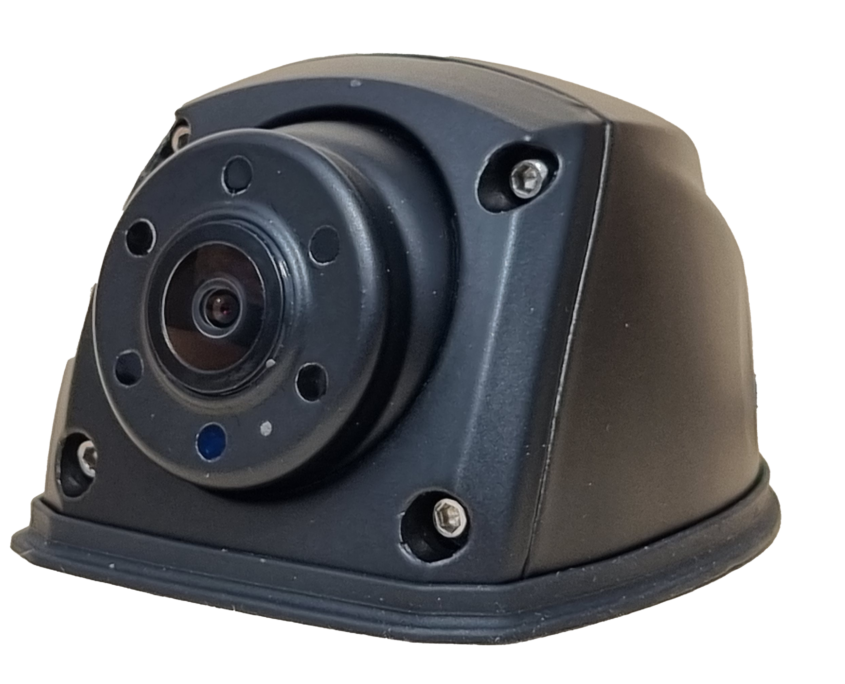

VTE-548-S01 – Side Mount Colour Camera
The VTE-548-S01 is a water resistant side-mount colour camera with night vision, suitable for internal and external use on HGVs, Motorhomes, Horseboxes and Light Commercials. Can be mounted for left, right or rear vertical orientation.

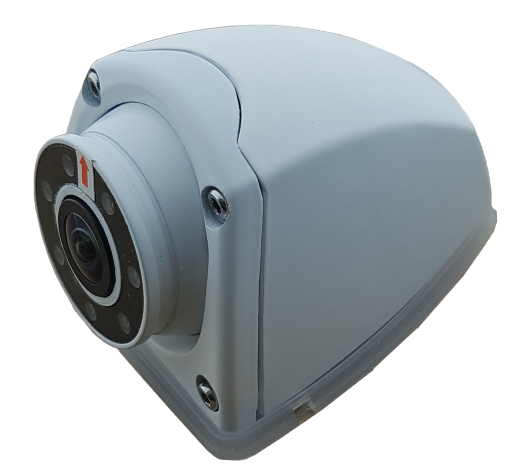

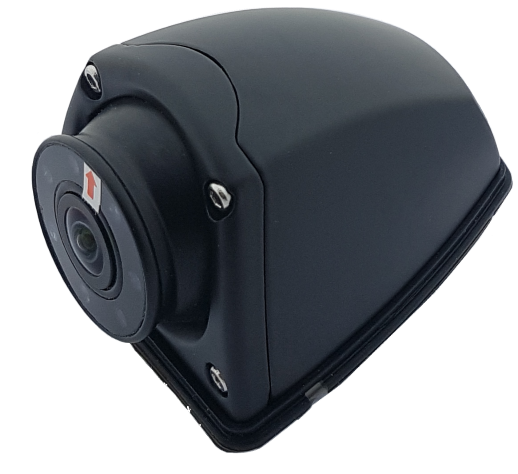

AW-013T – Side Mount Colour Camera
The AW-013T is a D1 water resistant side-mount colour camera with night vision, suitable for internal and external use on HGVs, Motorhomes, Horseboxes and Light Commercials. Can be mounted for left, right or rear vertical orientation.
ST-FHD136410CI
The ST-FHD136410CI is an HD1080 IP69K waterproof colour camera with night vision, commonly used with our 360 camera systems.Suitable for internal and external use on HGVs, Motor-homes, Horseboxes, and Light Commercials.
Specifications:
- 1080P high definition
- IP69K waterproof
- Wide viewing angle: 180° or 200°
- Night vision distance: 5m (16.40ft)
- Power supply: DC 12V
- Anti-vibration: ISO 16750-3 (Max. 17.3G)
- Working temperature: -20ºC ~ +70ºC
- PAL

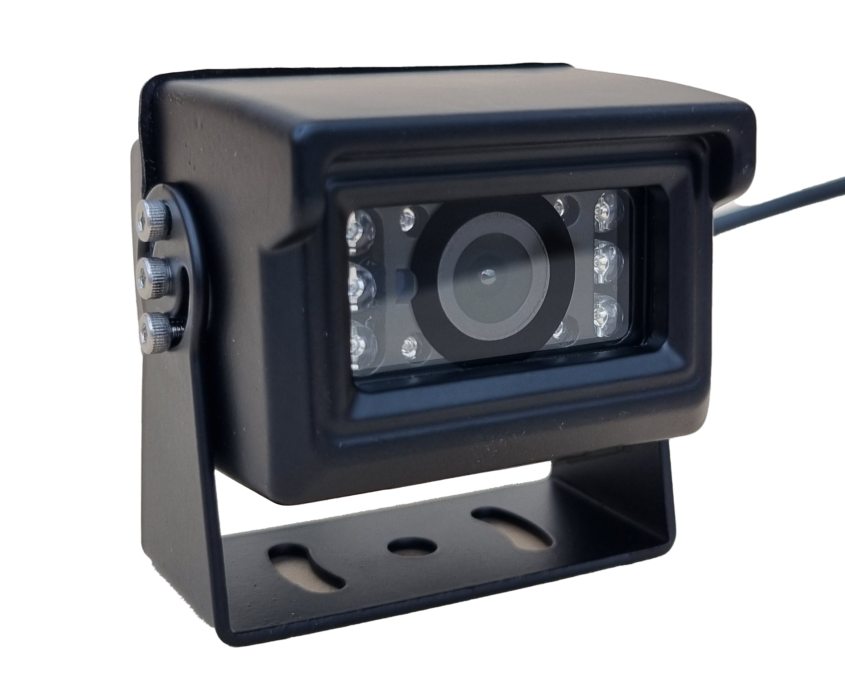

VTE-644-R01 – Heavy Duty 720p Colour Camera
The VTE-644-R01 is a heavy duty 720p waterproof colour camera with night vision, suitable for internal and external use on HGVs, Motor-homes, Horseboxes, and Light Commercials.
Specifications:
- AHD Mini Rear Camera, IP69 Waterproof
- 1/3” CMOS & 2.8MM Lens
- 10PCS IR Led Lights, IR Distance:5-10Mts
- Night Vision: Black & White and Colour
- Dimension:55.7x56x41.7MM
- 12 volt Operating Voltage (DCV)
- Ultra Low Light Performance
- 720p
- PAL
AW-9880 – Heavy Duty Colour Camera
The AW-9880 is a heavy duty water proof colour camera with night vision, suitable for internal and external use on HGVs, Motor-homes, Horseboxes, and Light Commercials.
Specifications:
- 300 mA Current Consumption
- -20°C ~ +75°C Operating Temp
- Black or White
- 88H x 43W x50Dmm
- 12 volt Operating Voltage (DCV)
- Auto Focus 1/3″ Colour CCD lens
- 120° Degree Lens Angle
- Ultra Low Light Performance
- 0.02 lux Minimum Illumination
- PAL
VTE-977-F03
The VTE-977-F03 is a high-definition 1080p front-facing color camera designed without LED lighting to eliminate flashback when mounted inside a windscreen. This camera is ideal for applications requiring an internal screen-fitted camera and is suitable for use in heavy goods vehicles (HGVs), motorhomes, horseboxes, and light commercial vehicles.
Specifications:
- 1080P high definition
- Power supply: DC 12V
- PAL
- AHD Forward Camera, Sony Imax 307 Starvis Sensor, WDR
- 1/3” CMOS & F2.0 Starvis Cam Lens, 2.8MM, 180 degree
- Mini Size, Metal Camera Shell, 3M Tape Installation
- IP65
- Dimensions: 27.8 x 14.25 x 20.3mm
For a comprehensive UK installation by one of our qualified technicians, on any number of vehicles, please Contact Us.
