Vehicle DVR Systems UK for Fleet CCTV and Recording
Vehicle DVR systems provide reliable video evidence and fleet visibility by recording cameras fitted around commercial vehicles, HGVs, vans and plant machinery.
Vtech Systems supplies and professionally installs single and multi-camera DVR solutions ranging from compact two-channel recorders to larger eight-channel systems for complete vehicle CCTV coverage.
Depending on the system selected, recordings can be stored locally using SD card, HDD or SSD storage, while 4G-enabled systems can provide remote access to live and recorded footage through the Vtech Systems online portal.
A professionally installed vehicle CCTV system can help protect drivers and fleet operators against false claims, support incident investigation and provide valuable evidence for insurers.
Why Fit a Vehicle DVR System?
A vehicle DVR does more than simply record the road ahead. By connecting cameras positioned around the vehicle, a DVR can provide a detailed record of incidents involving the front, sides, rear and surrounding working areas.
A properly configured system can help fleet operators:
• Capture clear video evidence following an incident
• Defend against false or disputed insurance claims
• Review incidents involving drivers and vulnerable road users
• Support driver training and incident investigation
• Monitor activity around vehicles and specialist equipment
• Access recordings without removing storage media on compatible 4G systems
• Improve visibility and reduce operational risk
Which Vehicle DVR System Do I Need?
1–2 Camera Systems
Best suited to: vans, smaller commercial vehicles and straightforward front/rear recording.
Compact DVRs and dashcam systems can provide high-definition recording without requiring a large recorder or hard drive. These systems are ideal where only one or two camera views are required.
4 Camera Systems
Best suited to: HGVs, rigid vehicles, vans and plant requiring front, rear and side coverage.
Four-channel DVR systems provide a practical balance between comprehensive vehicle coverage and storage requirements and are one of the most common configurations for commercial fleets.
8 Camera Systems
Best suited to: larger HGVs, specialist vehicles, construction equipment and applications requiring extensive all-round recording.
Eight-channel systems allow cameras to be positioned both inside and around the vehicle to capture multiple working areas, blind spots and vehicle surroundings simultaneously.
4G Remote-Access Systems
Best suited to: individual and fleet operators requiring remote access to footage and vehicle information.
All compatible DVRs can connect to the Vtech online portal, allowing authorised users to access live camera views, recorded footage and vehicle information without waiting for the vehicle to return to the depot.
Remote Fleet CCTV with Vtech TMS2
Selected Vtech DVR systems can connect to our online portal using a 4G mobile data connection.
This gives fleet managers remote access to vehicle CCTV and recorded information from an internet-connected computer, helping operators respond quickly when an incident occurs.
Depending on the equipment and configuration, portal features can include:
• Live camera viewing
• Remote playback of recorded footage
• Remote video download
• Vehicle location information
• Recorded speed and journey information
• Access to multiple vehicles from one fleet portalFollowing an incident, footage can therefore be reviewed and supplied to an insurer or fleet manager without waiting for the vehicle to return to the depot.
DVR Storage and Recording Time
How long a DVR retains footage depends on several factors, including the number of cameras connected, recording resolution, frame rate, video compression settings and the amount of storage installed.
Smaller systems may record to an SD card, while larger multi-camera systems can use HDD or SSD storage for substantially greater recording capacity.
When the available storage becomes full, DVR systems are normally configured to overwrite the oldest footage automatically, allowing continuous recording without requiring the driver to manage the storage manually.
Vtech can recommend an appropriate storage capacity based on the number of cameras fitted and the approximate recording period required.

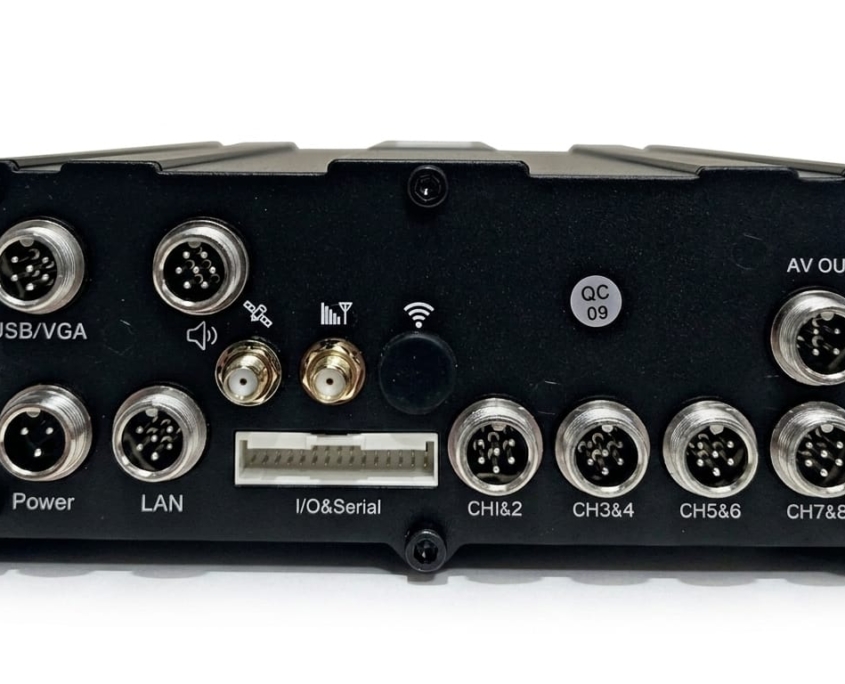

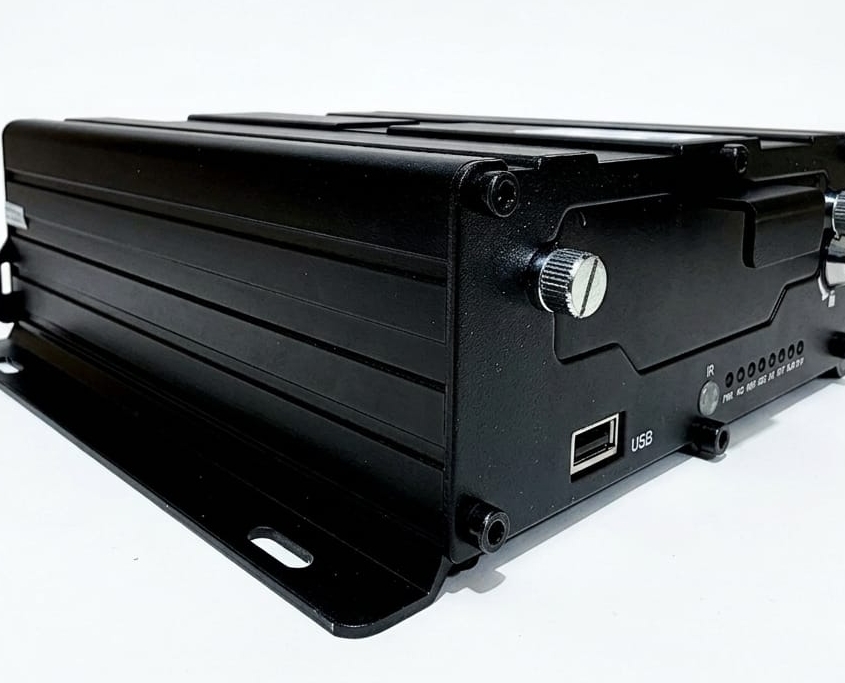

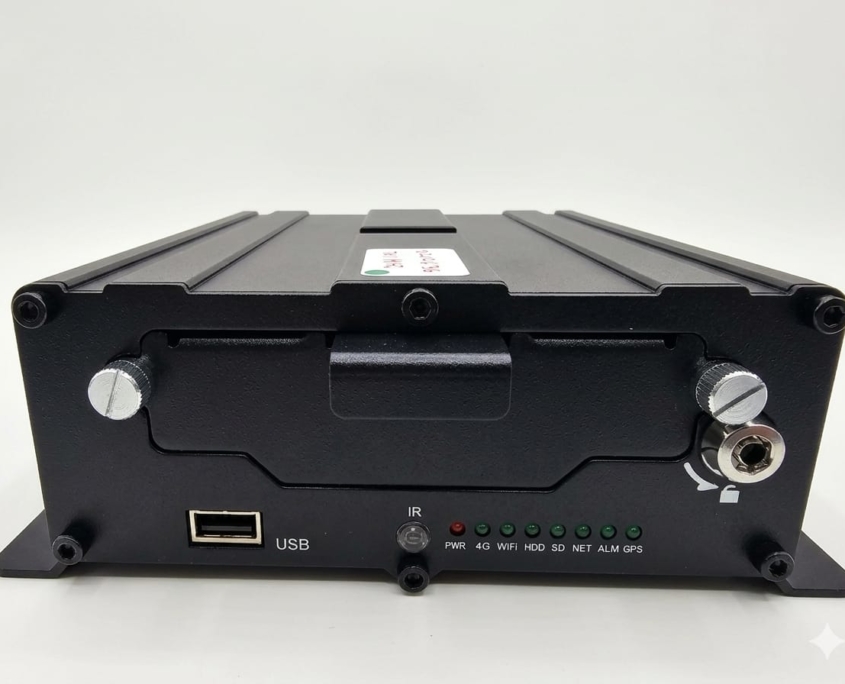

ME31-08 V5 – High-Capacity Multi-Camera DVR
Best suited to larger commercial vehicles and specialist applications requiring extensive multi-camera recording.
The ME31-08 V5 is a high-capacity mobile DVR designed for demanding commercial vehicle installations. It supports up to eight 1080p AHD camera inputs, with additional IP camera capability where required.
Built-in 4G, GPS and optional Wi-Fi capability allows the recorder to be integrated with compatible remote fleet monitoring platforms, while large-capacity HDD or SSD storage makes it suitable for vehicles requiring extended recording periods.
Key Features:
- • 8 x 1080p AHD camera inputs
• Support for up to 4 additional IP camera inputs
• H.265/H.264 video compression
• Built-in 4G, GPS and optional Wi-Fi
• HDD/SSD recording up to 4TB
• SD card backup storage up to 512GB
• Integrated 6-axis G-sensor
• 8–36V wide-range vehicle power input
• Optional AI functionality depending on configuration
• Remote portal connectivity available if required
Vtech standard configuration includes a 1TB HDD recording drive, with larger storage options available where required.

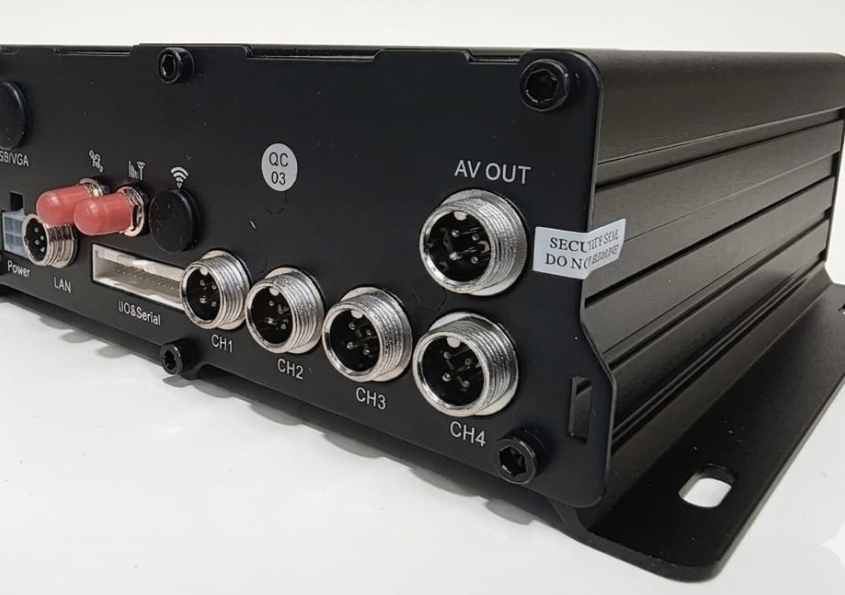

ME32-04N – 4-Channel DVR
Best suited to commercial vehicles requiring front, rear and side camera recording with large-capacity local storage and optional remote access.
The ME32-04N provides four 1080p AHD camera inputs together with support for an additional 1080p IP camera. Its combination of HDD/SSD storage, 4G connectivity and GPS makes it a flexible option for fleet CCTV installations.
Key Features:
• 4 x 1080p AHD camera inputs
• 1 x additional 1080p IP camera input
• HDD/SSD recording up to 2TB
• SD card storage up to 512GB
• Built-in 4G, GPS and optional Wi-Fi
• CVBS video output
• Integrated G-sensor
• 5-channel audio input
• Optional DMS/ADAS/FR functionality
• 6-pin aviation Ethernet connection
• 8–36V wide-range vehicle power input
• Remote portal connectivity available

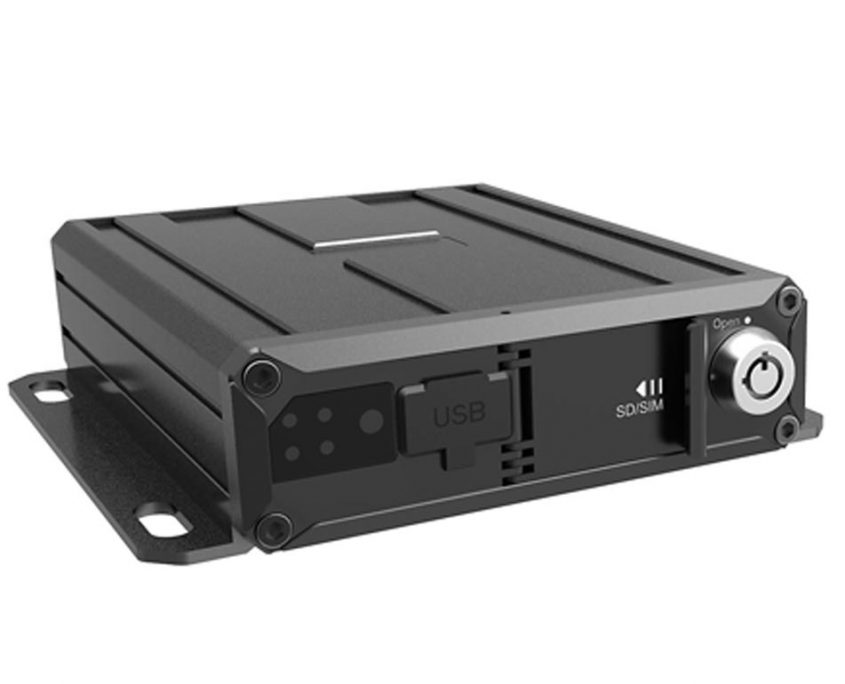

ME41-02 – Compact 2-Channel DVR
Best suited to vans, smaller commercial vehicles and applications where installation space is limited.
The ME41-02 is a compact two-channel mobile DVR capable of recording two 1080p AHD cameras while providing 4G connectivity, GPS and G-sensor functionality.
Its small size makes it particularly useful where a conventional HDD recorder would be unnecessarily large or difficult to install.
Key Features:
• 2 x 1080p AHD camera inputs
• H.265/H.264 video compression
• SD card recording up to 512GB
• Built-in 4G and GPS
• Integrated G-sensor
• CVBS video output
• 8–36V wide-range vehicle power input
• Compact commercial vehicle design
• Remote portal connectivity available
Which Vtech DVR Should I Choose?
ME41-02
A compact choice for two-camera installations where space is limited.
ME32-04N
A practical option for four-camera commercial vehicle installations requiring large-capacity storage and remote connectivity.
ME31-08 V5
Designed for larger or more complex installations requiring extensive multi-camera coverage and greater recording capacity.
Not sure which system you need? Vtech can assess the vehicle, required camera coverage, storage requirements and remote-access needs and recommend the most appropriate DVR configuration.
Vehicle DVR Installation & Fleet Rollouts
Vtech Systems provides professional vehicle DVR and camera installation across the UK, from individual vehicles to planned multi-vehicle fleet rollouts.
We can help specify camera coverage, recording capacity, remote-access requirements and installation arrangements to suit your vehicles and operation.
Speak to our team for practical advice and a tailored vehicle CCTV solution.
Frequently Asked Questions
How long will a vehicle DVR store footage?
Recording time depends on the number of cameras, resolution, frame rate, compression settings and installed storage capacity. Vtech can recommend the appropriate storage size based on the recording period required.
Can I view my vehicle cameras remotely?
Selected 4G-enabled DVR systems can provide remote access through the Vtech TMS2 portal, allowing authorised users to view live cameras and access recorded footage remotely.
Can you add a DVR to cameras already fitted to my vehicle?
In many cases, existing cameras may be compatible with a new DVR. Vtech can assess the installed equipment and advise whether the cameras and existing wiring can be retained or require upgrading.
